Aspire High Speed Servo Litho Laminator


HOME > PRODUCTS > Aspire High Speed Servo Litho Laminator

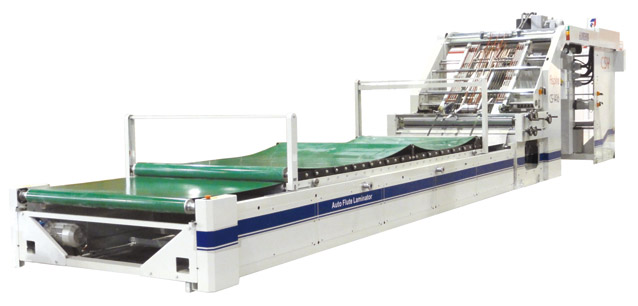

Aspire High Speed Servo Litho Laminator

Product ID:CS-1316/1416/1616

  • Description
  • Specification Table
  • Related Product

Patented Front-top Lead Edge Suction Feeder' allowing litho sheet to be delivered rapidly and smoothly : No calibration is required in switching size. and green hand can operate without intensive training : No suction mechanism on the sheet pile stack. offering obstacle operation space.



Model CS-1316 CS-1416 CS-1616
Max. Sheet Size W*L (mm) 1300 x 1300 1450 x 1450 1650 x 1650
Min. Sheet Size W*L (mm) 450 x 450 450 x 450 550 x 550
Thickness of upper paper (g/m2) 120 ~ 800 120 ~ 800 120 ~ 800
Thickness of bottom paper (mm) 0.5 ~ 10 0.5 ~ 10 0.5 ~ 10
Machine Speed (m/min) 150 150 150
Machine Speed (sheet/hr) 10000 9000 8000
Typical speed (M/min) 8000 7200 6400
Accuracy (mm) ±1.5 ±1.5 ±1.5
Machine space (W/L/H) (mm) 10050 x 2100 x 2180 10050 x 2220 x 2180 10050 x 2340 x 2180
Power (HP) 25 25 25
