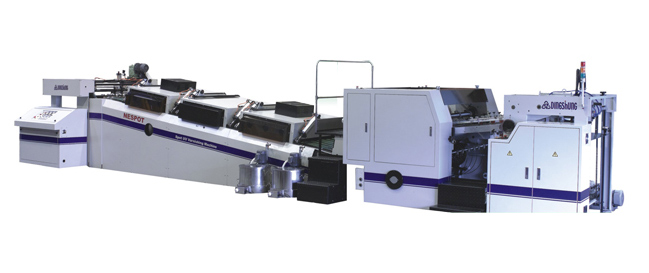

NESPOT AUTO UV/IP Spot Varnisher

Product ID：SP 660/1060/1440

  • Description
  • Specification Table
  • Related Product

Using streaming feeder for easy adjustment. With double sheets detector to protect the blanket. Suction and blow of feeder head, equipment with one vacuum pump, ensure feeding paper smoothly. Can adjust pile right / left position during operation.



Model SP-660E SP-1060C SP-1060E SP-1440E
Max. sheet size (mm) 660 x 480 1060 x 740 1060 x 740 1400 x 1020
Min. sheet size (mm) 300 x 210 450 x 360 450 x 360 700 x 500
Paper thickness (mm) 0.1-0.65 0.1-0.65 0.1-0.65 0.2-0.65
Max. varnish area (mm) 650 x 470 1050 x 730 1050 x 730 1420 x 1010
Gripper margin (mm) 6~8 6~8 6~8 8~12
Machine speed (sheets/hr) 9000 6000 8000 6000
Operation speed (sheets/hr) (UV) 7500  (UV) 4500  (UV) 7200  (UV) 4500
(IR) 5000 (IR) 4500 (IR) 4500  (IR) 4000
Curing power (KW) (UV)15  (IR)18 (UV)24 (IR)24 (UV)24 (IR)24 (UV)36 (IR)40

Machine Required power (KW)

 (Without curing device)

10 16.5 16.5 28
Machine Size (mm) 9250 x 2200 x 2000 9800 x 2410 x 1912 9800 x 2410 x 1912 12000 x 3060 x 2350
Machine Weight (kg) 6500 11300 11800 15150
