ATIVA AUTO Cardboard Laminator


HOME > PRODUCTS > ATIVA AUTO Cardboard Laminator

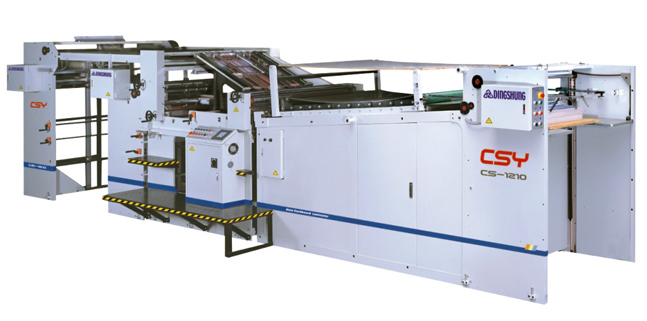

ATIVA AUTO Cardboard Laminator

Product ID:CS 1207/1210/1410/1620

  • Description
  • Specification Table
  • Related Product

The system utilizing the speed difference between the faster conveying and front stopper to advance the moving paper to reach the front stopper. and the sides are synchronized to front stopper. The shifting side stoppers are used to align the two papers during moving.



Model CS-1207 CSC-1210 CS-1410
Max. Sheet Size W*L (mm) 1200 x 720 1200 x 1000 1450 x 1020
Min. Sheet Size W*L (mm) 450 x 450 450 x 450 450 x 450
Thickness of Litho (g/m2) 100 ~ 800 100 ~ 800 100 ~ 800
Thickness of Substrate (g/m2) 180 ~ 800 180 ~ 800 180 ~ 800
Thickness of bottom paper (mm) 0.5 ~ 10 0.5 ~ 10 0.5 ~ 10
Machine Speed (m/min) 150 110 110
Accuracy (mm) ±0.5 ±0.5 ±0.5
Machine space (W/L/H) (mm) 2118 x 8900 x 2180 2118 x 8900 x 2180 2368 x 8900 x 2180
Power (HP) 15 15 15
Machine Weight (kg) 7000 7000 8000
